MySQL Workbench

First time used MySQL Workbenc on my Win7, it's more suitable for me... everything in 1 form, it provides DBAs and developers an integrated tools environment for :

  • Database Administration (replacing MySQL Administrator)

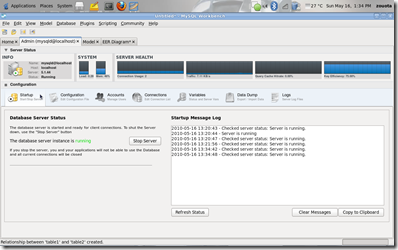

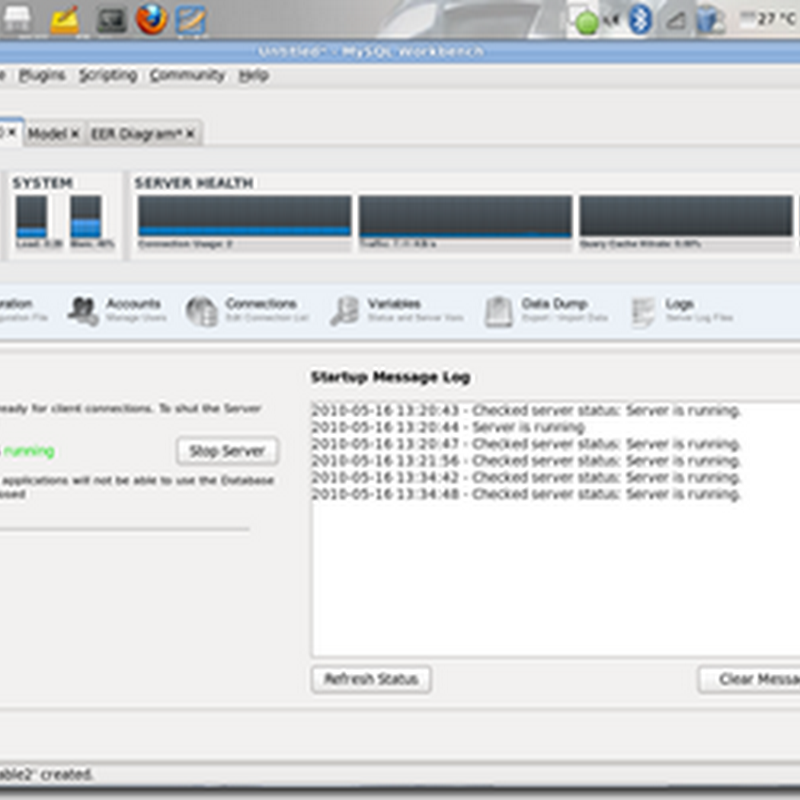

Screenshot-1

  • SQL Development (replacing MySQL Query Browser)

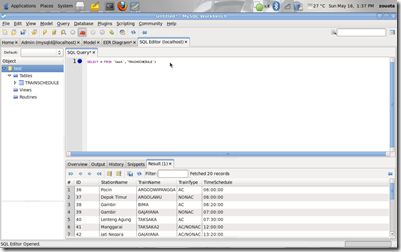

Screenshot-2

  • Database Design & Modeling

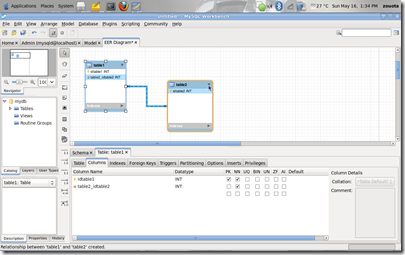

Screenshot

some steps I took to install MySQL Workbench :
I used "yum" command to install it from "remi" repo, so :
    # wget http://rpms.famillecollet.com/remi-release-12.rpm
then execute downloaded rpm file with :
    # rpm -Uvh remi-release-12.rpm
the last, install the workbenc with command :
    # yum --enablerepo=remi install mysql-workbench

if you saw this in your terminal, then your MySQL workbench is ready to use!

Running rpm_check_debug
Running Transaction Test
Finished Transaction Test
Transaction Test Succeeded
Running Transaction
Warning: RPMDB has been altered since the last yum transaction.
  Installing     : mysql-connector-c++-1.1.0-0.1.bzr818.fc12.remi.i586      1/5
  Installing     : 1:python-sqlite2-2.3.5-2.fc12.i686                       2/5
  Installing     : ctemplate-0.95-2.fc12.i686                               3/5
  Installing     : python-paramiko-1.7.6-1.fc12.noarch                      4/5
  Installing     : mysql-workbench-5.2.21-1.fc12.remi.i586                  5/5

Installed:
  mysql-workbench.i586 0:5.2.21-1.fc12.remi

Dependency Installed:
  ctemplate.i686 0:0.95-2.fc12
  mysql-connector-c++.i586 0:1.1.0-0.1.bzr818.fc12.remi
  python-paramiko.noarch 0:1.7.6-1.fc12
  python-sqlite2.i686 1:2.3.5-2.fc12

Complete!
[root@localhost Downloads]#

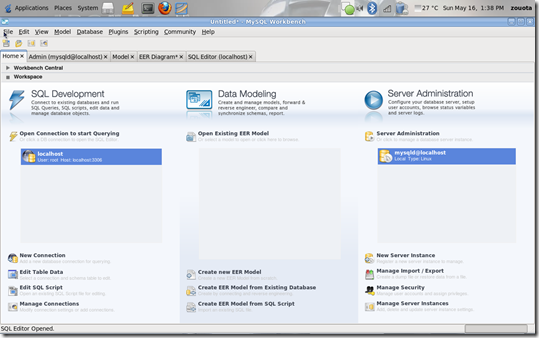

Screenshot-3

owh yeah! one more thing, I use Linux Fedora 12 :)
